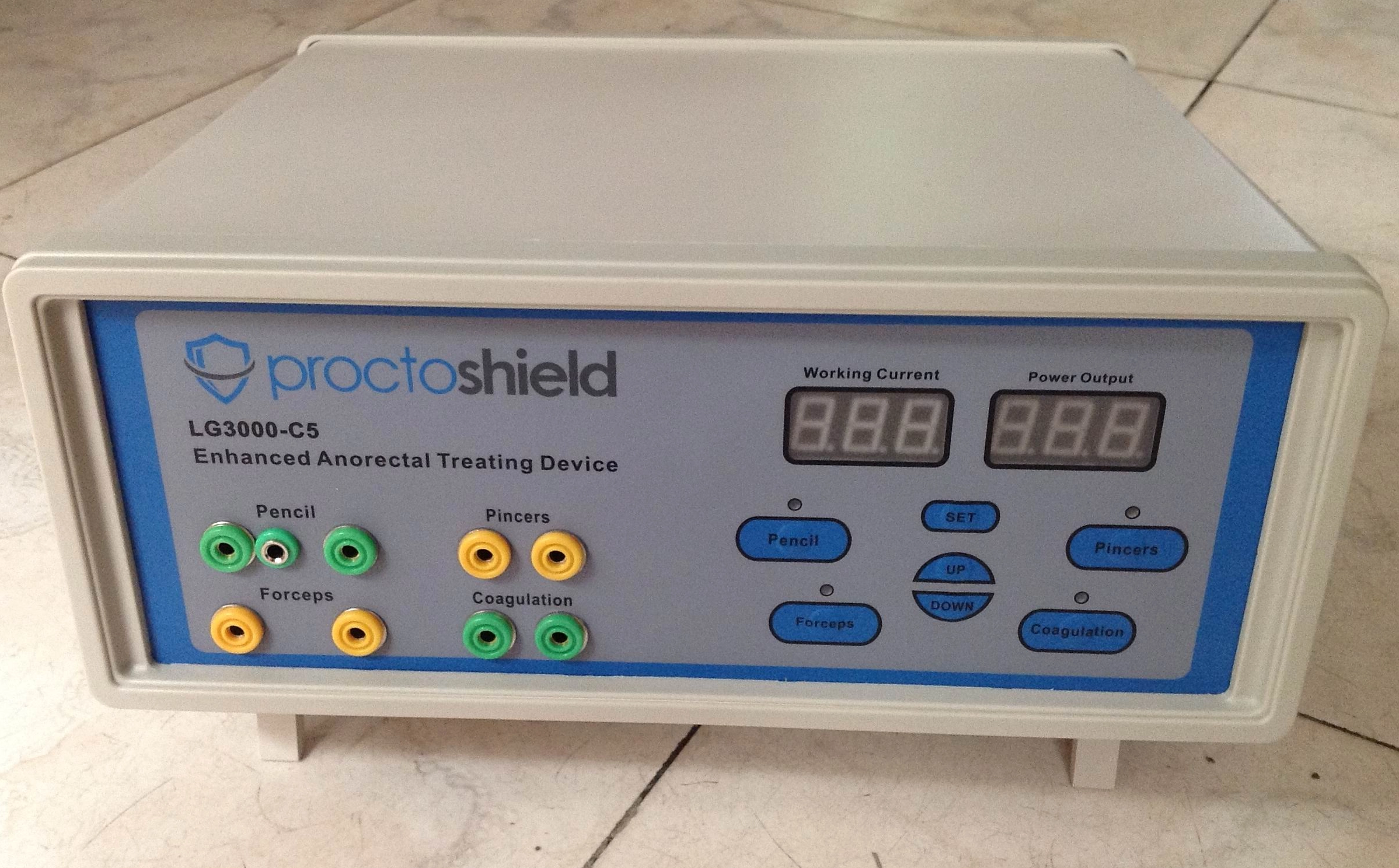

LG3000-C5 Proctoshield High-frequency radio-frequency bipolar coagulation generator for hemorrhoids painless surgery

Scope of application
Department of coloproctology:
Internal, external and mixed hemorrhoids, anal fissure, anal fistula, proctopolypus, analabscess, hypertrophy of anal papilla, condyloma acuminatum, etc.

Main clinical characteristics
◆ Rapid curative treatment, each hemorrhoid only needs 3-5 seconds;
◆ No haemorrhage after surgery with little suffering and fine curative effect;
◆ Make tissues dry and hard without carbonization. Bound of dry and hard part is clear with high security;
◆ No need to change dressing, no hospitalization, no infection, no sequela and complicating
disease;

◆ High Frequency electrodes : BEIM Pincers, Bipolar forceps , ESU pencil, foot switch ;

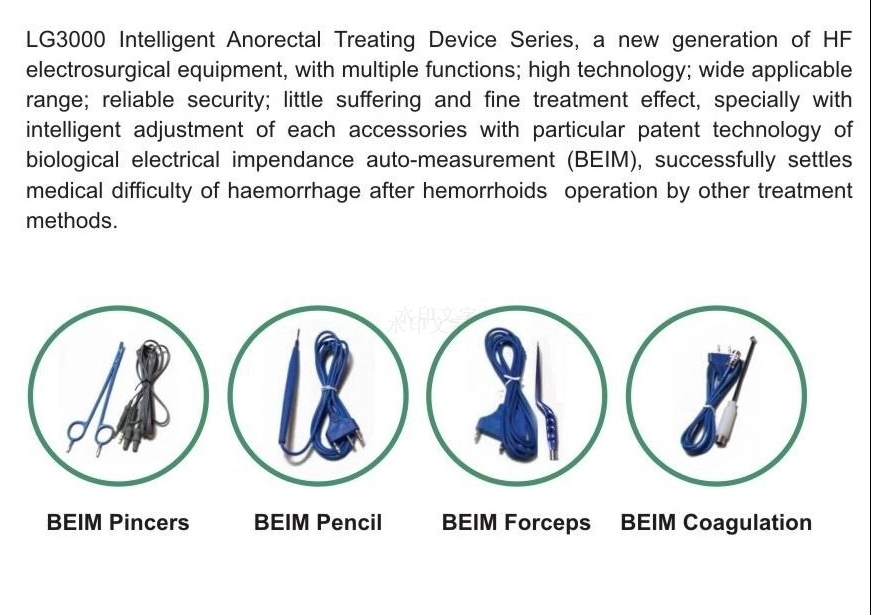

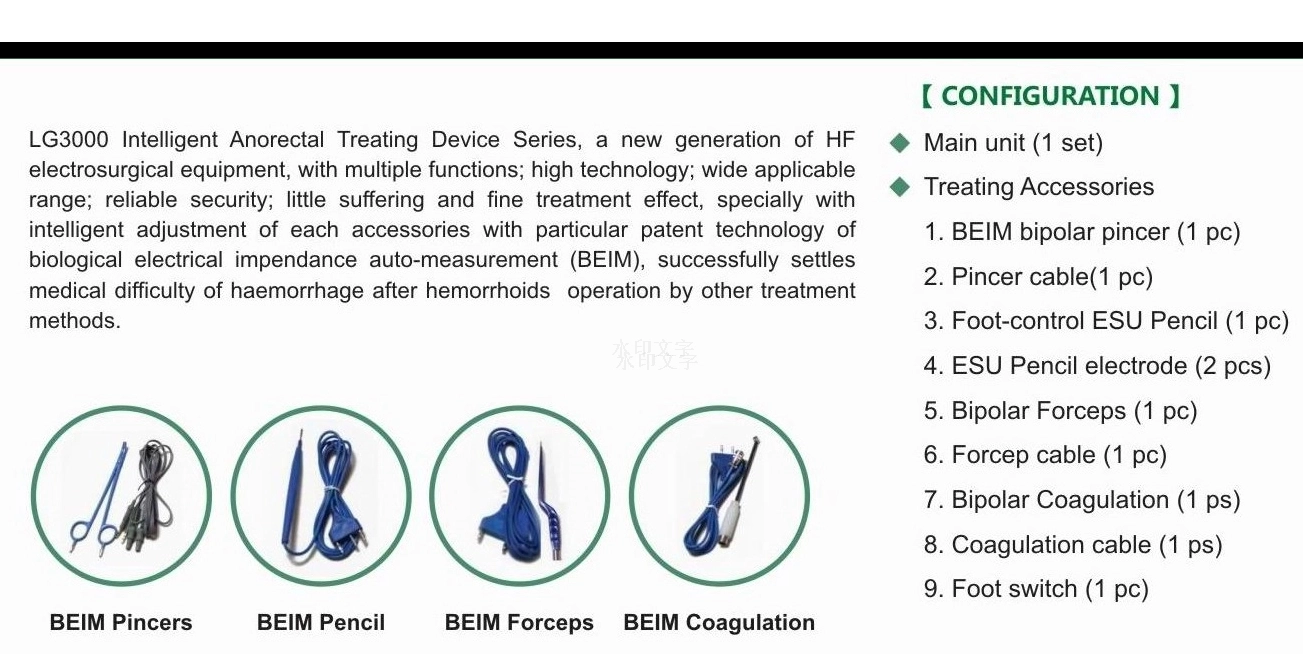

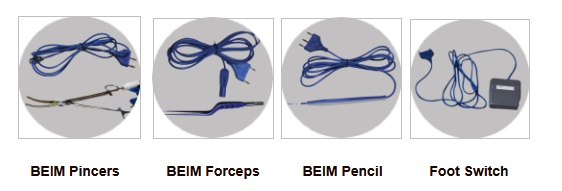

Treating Accessories:

1. BEIM Pincers

BEIM Pincers intelligently measures hemorrhoids, and then make the base of the hemorrhoid dry and hard without carbonization. It acts as sealing machines to seal off the base, no blood can flow out.

2. BEIM Forceps

Arresting bleeding instantly for larger blood vessels, making patients timely free from trouble after treatment.

3. BEIM Pencil

Used for excising the uncalled-for hemorrhoid tissues, assisting the electronic pincers to finish the hemorrhoid treatment. It has 3 different tips (blade, needle, ball) and 9 adjustable positions for output power to meet different demands.



(I) Advanced characters

1, BEIM technology ( Biological Electrical Impedance auto-measurement)
Advantages: completely different from other similar products, do not set the
time and power, intelligent identification of hemorrhoids tissue size,clipped
tissues become dry and hard without carbonization and beep prompt to ensure

treatment, solve the bleeding easily and other medical problems.

2, Range of treatment and clinical characteristics: Suitable for Anorectal
(hemorrhoids, external hemorrhoids, mixed hemorrhoids, anal fissure, anal
fistula, rectal polyp, perianal abscess, anal papillae hypertrophy, condyloma,
etc.), also applies to dermatology, gynecology and so on.

3, Fine curative effect
◆ Rapid curative treatment, each hemorrhoid only needs 3-5 seconds;
◆ No haemorrhage after surgery with little suffering and fine curative effect;
◆ Make tissues dry and hard without carbonization. Bound of dry and hard part is clear with high security;
◆ No need to change dressing, no hospitalization, no infection, no sequela and complicating disease;

4, Professional quality security system.
◆Passed ISO9001 and 13485 quality management system certification.
◆Class III medical devices registration certification issued by SFDA.
Registration No.: No. 2005, No. 3250580.
◆The products have a number of national patents:

Patent No.: ZL 02 270763.8, ZL 02 3 52595.9, ZL 2005 3 0100775.8.

5, Pre-return to zero output power of technology, safe and reliable Protection.

6, One year warranty, Life-long maintenance.

(II) Technical part of the parameters:
1. Power
a)Voltage:AC 220V±22 V；
b)Frequency:50Hz±1Hz.
2. Working conditions
a) Temperature: 5℃～40℃;
b) Relative humidity: ≤80%;
c) Atmospheric pressure: 70.0 kPa～106.0 kPa.
3. Safety classification: classⅠ, BF type
4. Working rule: Continuous operation with intermittent load(Operate 1m, pause 20s).
5. Fuse: F2AL250V.
6. Working frequency:1.25MHz±0.125 MHz
7. Input power:100VA
8. Output power:
a)Pincers: 1-100W, Tolerance: ±5W
b)Forceps: 1-100W, Tolerance: ±5W
c)Pencil: adjustive output powers: from 1-100W;
9. Force to start foot switch: 10N～50N
